QC Checker Documentation Core
Interface Guide

QC Checker Core Panel

Scriptronaut Blender panel.

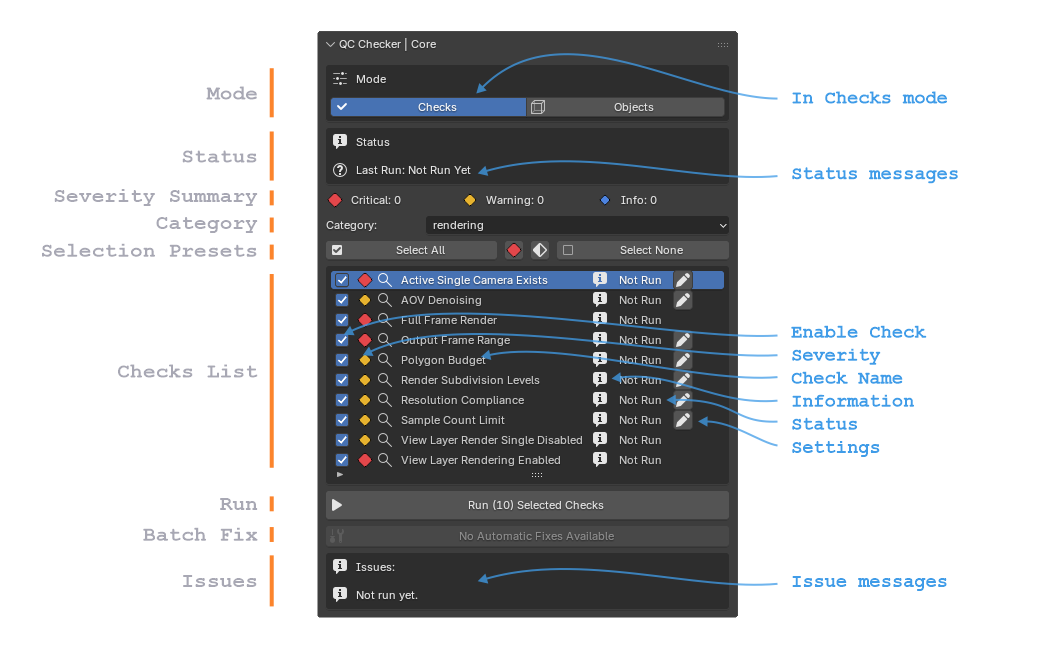

In Checks Mode

Scriptronaut

Mode

The Mode buttons switch between the two primary views of the QC Checker.
Checks: Displays every QC check in the selected category, allowing checks to be enabled, run, configured, and fixed. (see above)
Objects: Displays only objects that currently fail one or more QC checks, making it easier to inspect and fix problems object-by-object.

Status

The Status section summarizes the current state of the QC run.
Last Run : Shows when the selected category was last executed.
Scene Changed : Indicates whether the scene has been modified since the last QC run. If changes are detected, it is recommended to run the checks again before relying on previous results.

Severity Summary

The Severity Summary provides an overview of the current results for the selected category.
Scriptronaut Critical : Number of critical issues found. These generally should be fixed before moving forward.
Scriptronaut Warning : Number of recommended fixes that may affect quality or consistency.
Scriptronaut Info : Number of informational messages that do not represent errors.

Category

The current Category of the checks. Each Category has a number of checks.
There are 7 Categories included.

Selection Presets

Group of buttons to help selection of Checks to run.
Select All : Selects all checks.
Scriptronaut : Selects Critical checks only.
Scriptronaut : Inverts check selection.
Select None : Unselects all Checks.

Checks List

The Checks List displays every quality control check available in the selected category. Each row represents one independent validation that can be run against the current scene.
Scriptronaut Enable Check : Enables or Disables the check to be Run.
Scriptronaut Severity : Indicates the importance of the check.
Critical issues should normally be fixed before continuing,
Warning highlights recommended fixes, and
Info provides useful information.
Scriptronaut Check Name : Displays the friendly name of the QC check. Selecting a row also displays its failed objects or issue messages below after running the checks.

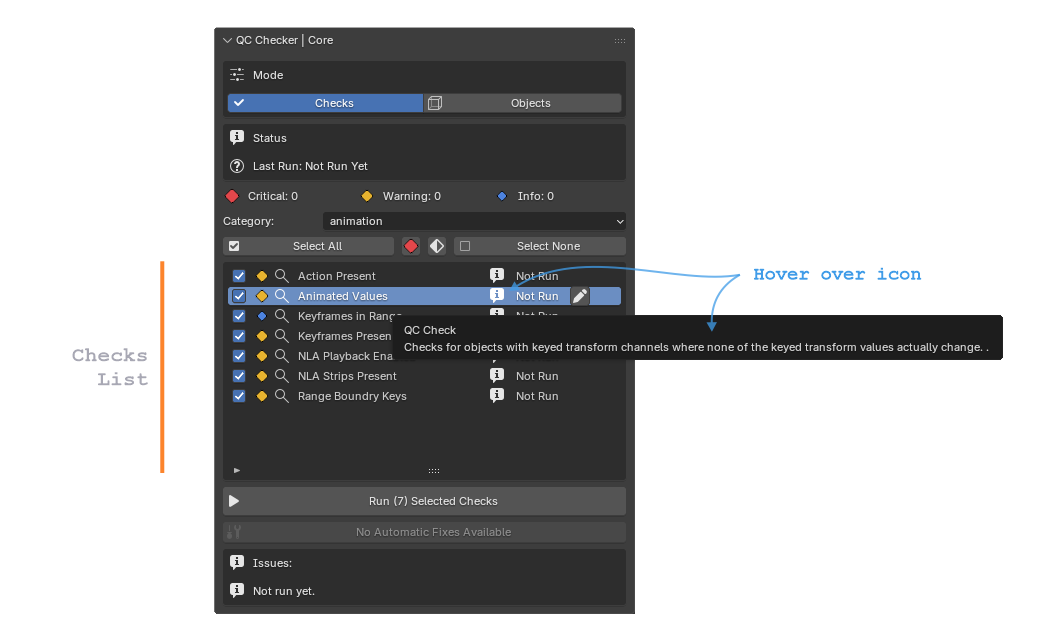

Scriptronaut Information : Tooltip describing what the check validates and why it exists. This is useful when learning the QC system or understanding an unfamiliar check.
Scriptronaut Scriptronaut Status : Shows the current result of the check: Not Run, Running, Pass, or Fail. Results are updated each time the check is executed.

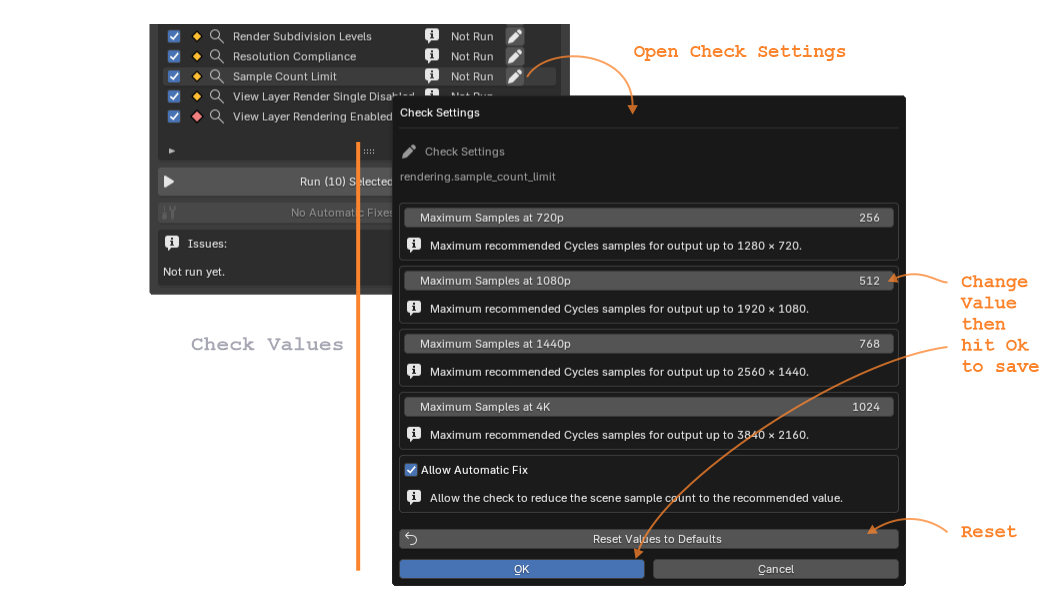

Scriptronaut Settings : Opens the settings dialog for checks that support user-configurable options, allowing project-specific thresholds or behavior to be adjusted.
Scriptronaut Scriptronaut Fix : After running a Check, This button executes the automatic fix for the failed check when one is available. Some checks require manual correction and therefore does not display a Fix button.

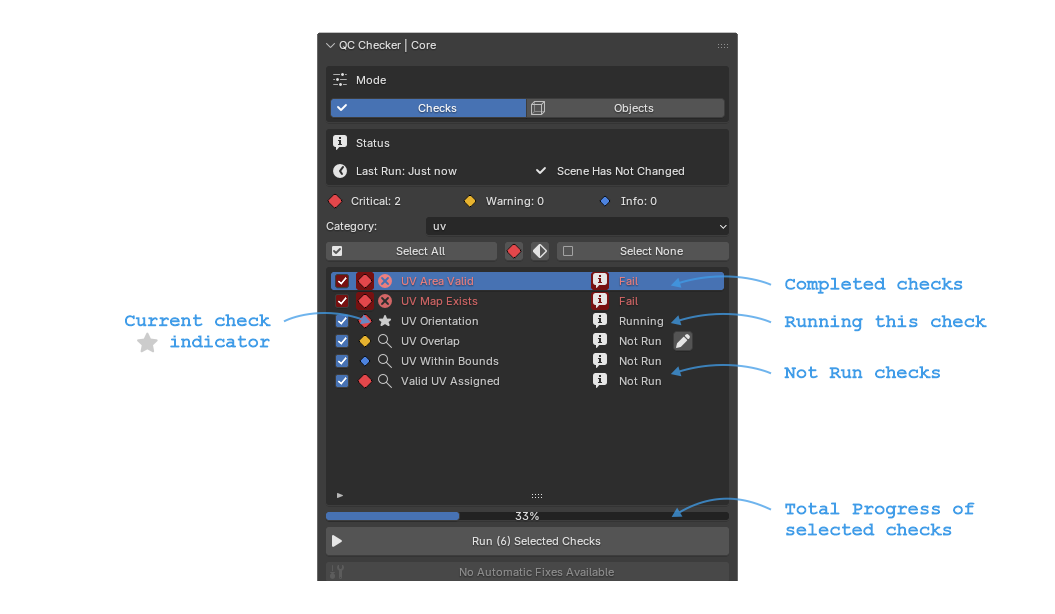

Run / Runnng

Click the Run button to Run the currently selected checks one after the other. Scriptronaut

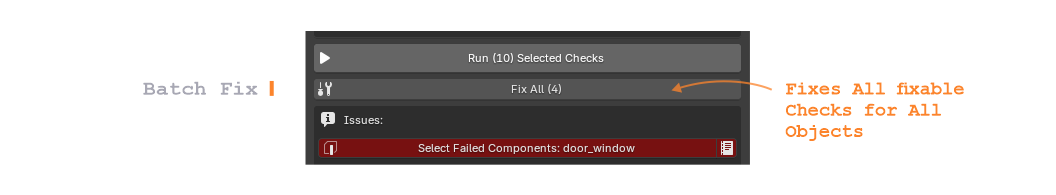

Batch Fix

Click the Fix All (#) button to Fix All fixable Checks for All Objects.
Scriptronaut

Issues

The Issues section lists the individual failures reported by the currently selected QC check.
Depending on the type of check, this section may display:

  • Failed Object
  • Failed Vertices, Edges, or Faces
  • Scene Settings
  • Materials
  • UV Information
  • Detailed error messages

For geometry-related checks, the Select button automatically selects the affected object or mesh components directly in Blender, making it easy to locate and correct the issue.

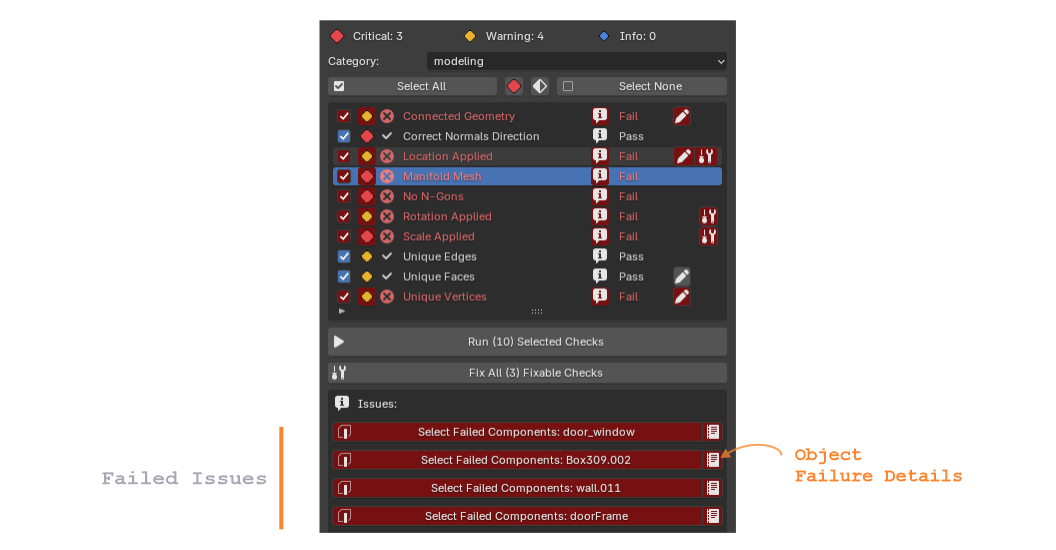

After Checks Run

Scriptronaut

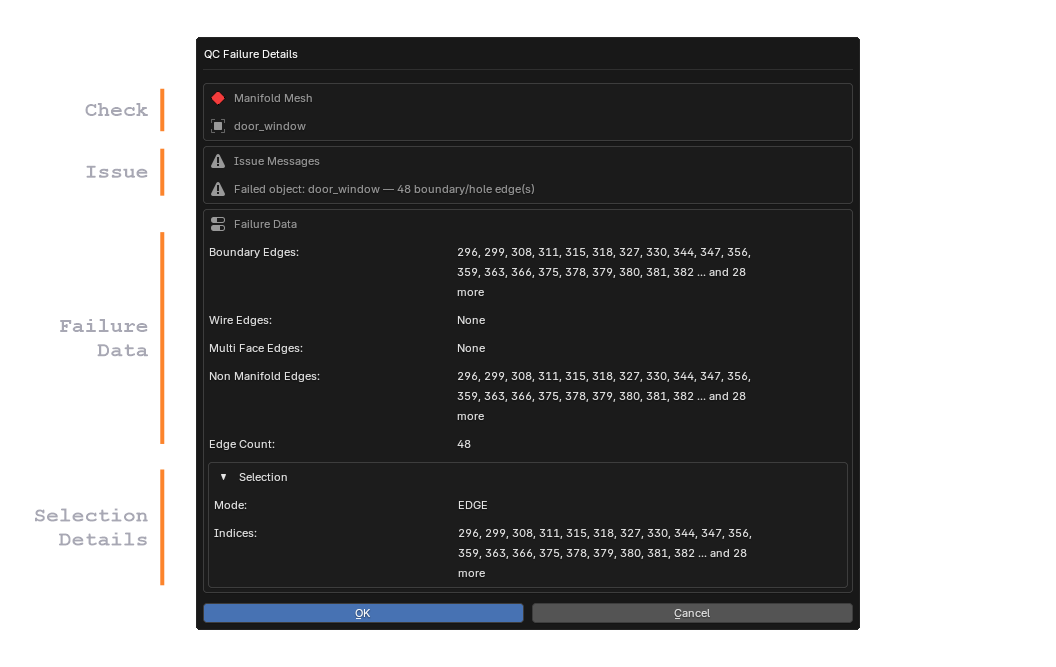

Failure Details

If any checks fail the objects that failed will be flagged. You can click on the Scriptronaut icon to see the Failure Details.

Scriptronaut

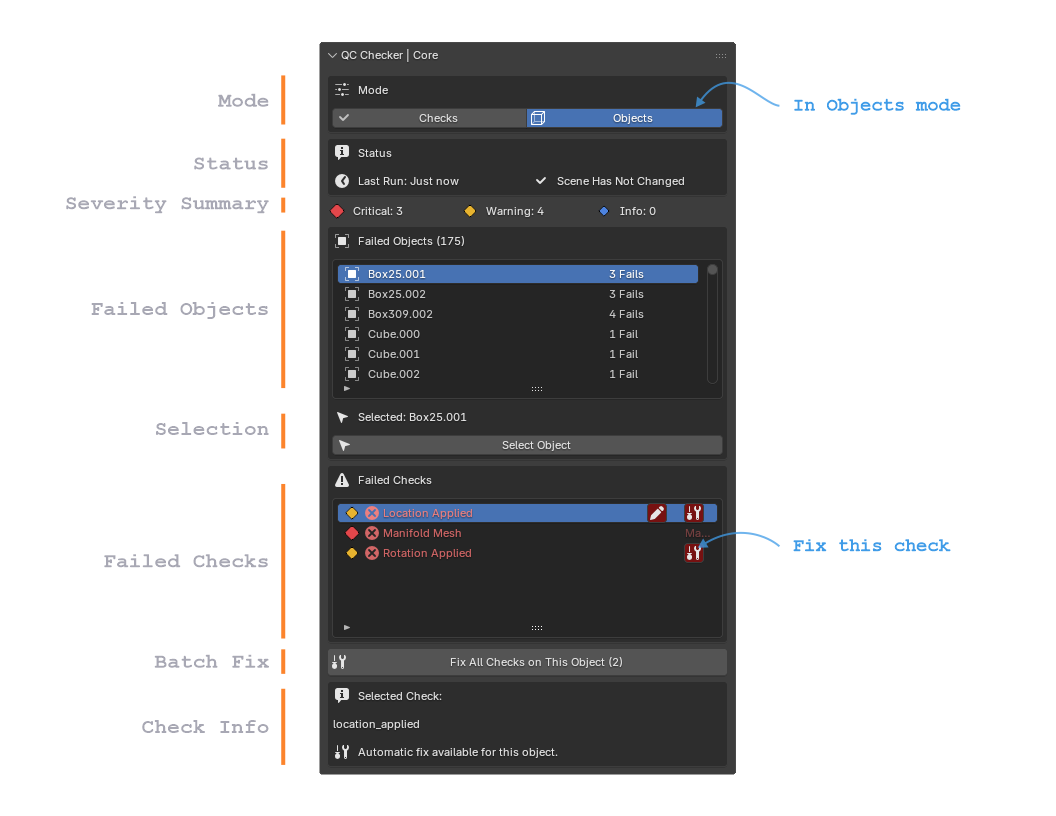

In Objects Mode

Scriptronaut

Mode

The Mode buttons switch between the two primary views of the QC Checker.
Checks: Displays every QC check in the selected category, allowing checks to be enabled, run, configured, and fixed.
Objects: Displays only objects that currently fail one or more QC checks, making it easier to inspect and fix problems object-by-object.

Status

(see above)

Severity Summary

(see above)

Failed Objects

List of Objects that have failed with the Number of Failed Checks it has.

Selection

Selects the Failed element in the Scene.

Failed Checks

List of failed Checks for the selected failed Object list.
If available click on the Scriptronaut to Fix only that specific Check on the Object.

Batch Fix

Fixes all failed Checks on the Currently selected Object.

Check Info

Information about what Check is currently Selected in the Failed Checks list.
